GLISS MASTER

Molteni & C · Vincent Van Duysen · 343 printed elements

No factory composition is loaded for GLISS MASTER — build it from its modules, the way your team writes them out of the price list by hand. Every element below is printed in the list with its own code and its own price.

HOW THE SYSTEM ASSEMBLES · from the price list

1. 1It is not possible to make wardrobes with a combination of hinged and sliding doors. 3-door wardrobe with sliding doors cannot be make with door W 1471.p. 35
2. 2Standard side panels are fitted with extension profiles finished in matt lacquered colours, pewter colour, bronze, iris (to specify at the time the order is placed). The side panel extension profiles in the coloured glossy lacquered and wooden finishes are always matched with side panels with the same finish.p. 35

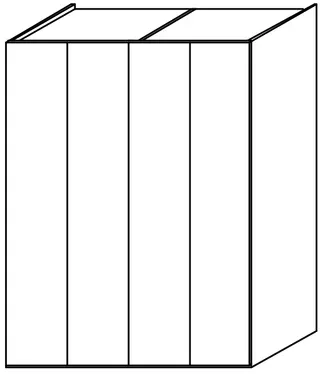

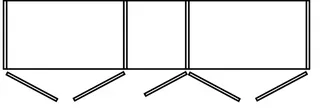

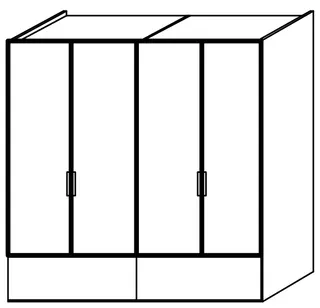

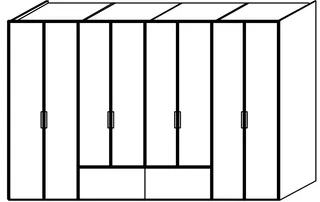

3. 3Finished compositions H 2631 - hinged doors Codes on the order must be preceded by G26.p. 48
4. 4Compositions with FIND-ME/HOLLOW/”A FILO” doors are not available in all finishes. See finishes for single doors (page 10/11)p. 48

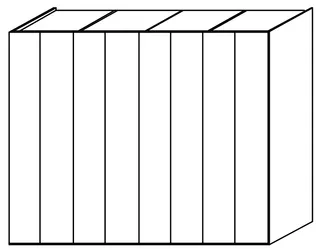

5. 5Finished compositions H 2631 - sliding doors Structure with melamine side panels Codes on the order must be preceded by G26.p. 59
6. 6Finished compositions H 2631- flush sliding doors Structure with melamine side panels Codes on the order must be preceded by G26.p. 61
7. 7Reductions Melamine central partition reduction € 51 Wooden side panel reduction € 51 Frame central partition in height reduction € 134 Glass central partition or side panel in height reduction € 134 Terminal element in height reduction € 102 External corner with reduction height € 7 width/depth € 102 With the fronts in melamine front finish and lunar, the exterior of the lateral piece can be in matt lacquer or melamine finish like an internal structure.p. 68
8. 8Surcharge for flush sliding doors wardrobe with 3 doors To calculate the price of the flush sliding doors wardrobe with 3 doors, add € 474 as mechanism surcharge. Flush sliding glass doors cannot be used in compositions with 3 doors.p. 86

WHAT IS IN THE CATALOGUE · 343 ELEMENTS

prices are calculated live in the builder, from the elements’ own printed cells
