PASS-WORD EVOLUTION

Molteni & C · Vincent Van Duysen · 53 printed elements

No factory composition is loaded for PASS-WORD EVOLUTION — build it from its modules, the way your team writes them out of the price list by hand. Every element below is printed in the list with its own code and its own price.

HOW THE SYSTEM ASSEMBLES · from the price list

1. 1Examples of finished storage units D 495 (19 1/2”) The price is always calculated with the covering in the same finish as the front. Compositions are always without partitions and internal accessories.p. 158
2. 2Examples of finished suspended storage units D 385 (15 1/8”) The price is always calculated with the covering in the same finish as the front. Compositions are always without partitions and internal accessories. * The price of the composition was calculated with the upper covering of the measure greater; it is therefore to be considered indicative.p. 194
3. 3Examples of finished storage units with flush sliding doors D 495 (19 1/2”) W 1900 (74 3/4”) / 2220 (87 3/8”) The price is always calculated with the covering in the same finish as the front. Compositions are always without partitions and internal accessories.p. 199

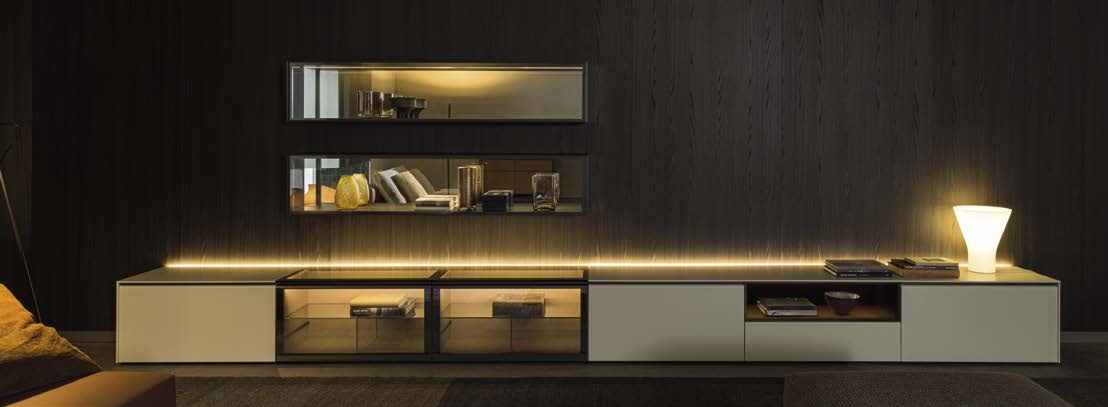

4. 4Wall-mounted structures with external lighting system Wall-mounted structures can be fitted with an upper and lower LED, or upper LED to be specified when ordering.p. 201
5. 5LED lighting bars must be ordered at the same time as the shelves, and cannot be added at a later time on existing shelves.p. 204
6. 6Can be turned on using a connection to a controlled switch or with the (optional) radio control kit. The shelf can be ordered without lights, with lower and upper lights, or only with lower or upper lights. When ordering, indicate the quantity and desired position of the lighting bars. Each shelf has its own system. Each shelf must be fitted with a connector.p. 204
7. 7Shelves with back panel can be custom made in width (min. 950 / max. 2770), they cannot be reduced in depth and the height of the modules cannot be changed.p. 206
8. 8The power cord must come out of the wall in correspondence with each wall mounted module and it must be prepared for use with a controlled socket or radio control kit. Electrical connections must be carried out by qualified personnel.p. 210

WHAT IS IN THE CATALOGUE · 53 ELEMENTS

prices are calculated live in the builder, from the elements’ own printed cells
