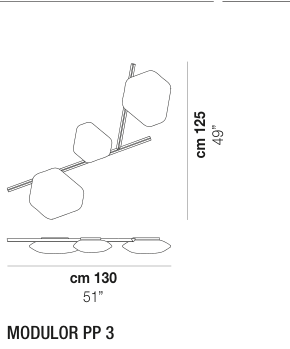

PP 3 · LED 98 12W+2×19W
Vistosi · Modulor · Pio e Tito Toso
- Article
- MODULPP3--098NEOBCSTL221CE· the chosen variant’s order code, of 17
- Type
- PP — parete - soffitto / wall - ceiling
- Designer
- Pio e Tito Toso
FRAME· from the price list
LED CODE· from the price list
LIGHT SOURCE
integrated (not replaceable)
«LED 98 12W+2×19W 7400 lm @3000K; LED 98 = 1xLED F + 2xLED G (p.13); module sheet p.13 «LED 98»» · p. 41
TECHNICAL
- Lumen
- 7400 lm
- Colour temperature
- 2700–3000 K
- CRI
- ≥90
- Control
- DIM2 / DIM3
- Dimmable
- yes
- IP
- IP20
- Class
- I
- Weight
- 12 kg
QUANTITY
1 626 € / pcs · public price · EUR excl. VAT
1 626 €
FACTORY NOTES · printed in the article’s own block
- NOTE
The PP1, PP2, and PP3 models feature 2 or 3 lamps installed separately and connected by an internally wired metal frame, allowing all fixtures to be powered from a single electrical point on the wall or ceiling. Only one of the two (or one of the three) lamps whichever is preferred will be installed directly at the wall/ceiling light point; the second and/or third can be positioned freely to achieve the desired aesthetic, while maintaining the lamp’s overall shape. Each lamp includes its own integrated driver. The metal frame is supplied pre-wired.
p. 41
DOCUMENTS
SOURCES · every page this card was read from
Vistosi 2025-1 Price List / Euro · p. 41
the price was read here · the article is printed here · the picture came from here · the drawing came from here
