← Lighting · TOOY · Lei /· 564.46 Track · 48V · 660 lm · DALI · C2 Matte Black / C42 / C70G · on track 48V · H 21 x L 18 · 5W 2700K· full product card

· 564.46 Track · 48V · 660 lm · DALI · C2 Matte Black / C42 / C70G · on track 48V · H 21 x L 18 · 5W 2700K

TOOY · Lei · Studio10

Article: 564.46
Type: Track
Designer: Studio10
Materials: metal, glass, aluminum

LIGHT SOURCE

integrated (not replaceable)

«p.63 «Light source: integrated LED, 12-40V, CC 160mA»» · p. 63

SPARE PARTS

· Clear Glass · Lei · Ø 6 x H 12564.VETCL40 €

· Frost Glass · Lei · Ø 6 x H 12564.VETFR45 €

ACCESSORIES

· Track feeding · trimless/ surface · L 11,2 x W 1,8 x H 1,8564.A42 €

· Track feeding joint · trimless/ surface · L 10,5 x W 1,8 x H 1,8564.B27 €

· Surface track end cap · trimless/ surface · L 2,6 x H 2,1564.C16 €

· Surface track end cap hole · trimless/ surface · L 2,6 x H 2,1564.D20 €

· Driver 60W max 10 spot · remote · /564.driver6050 €

· Track power feed “I” · surface · L 7,9 x W 3,5x H 1,9564.E4 €

· 1 m, 230V, black surface track · surface, not dimmable · L 100 x W 3,5x H 1,9564.SUR230V10033 €

· 2 m, 230V, black surface track · surface, not dimmable · L 200 x W 7,3 x H 2,6564.SUR230V20057 €

· 1 m 48V black surface track · surface, DALI · L 100 x W 2,6 x H 2,1564.SUR48V10099 €

· 2 m 48V black surface track · surface, DALI · L 200 x W 2,6 x H 2,1564.SUR48V200176 €

· 1 m 48V black trimless track · trimless, DALI · L 100 x W 7,3 x H 2,6564.TRIM48V100130 €

· 2 m 48V black trimless track · trimless, DALI · L 200 x W 7,3 x H 2,6564.TRIM48V200240 €

TECHNICAL

Power: 5 W
Lumen: 660 lm
Colour temperature: 2700 K
Control: DALI
Dimmable: yes
Weight: 0,6 kg

QUANTITY

468 € / pcs · EUR excl. VAT

468 €

FACTORY NOTES · printed in the article’s own block

NOTE
Track not included. See options on page 252. Remote 48V track driver available on request. Remote Casambi DALI available on request. Lenses with 18° or 36° beam available on request. 110/120V version available on request at an additional cost.
p. 63

DOCUMENTS

PDFTechnical sheetarrives with the factory’s document set

PDFAssembly / care instructionsarrives with the factory’s document set

PDFCertificatesarrives with the factory’s document set

SOURCES · every page this card was read from

PDF

TOOY — Global Pricelist 2025 · p. 63

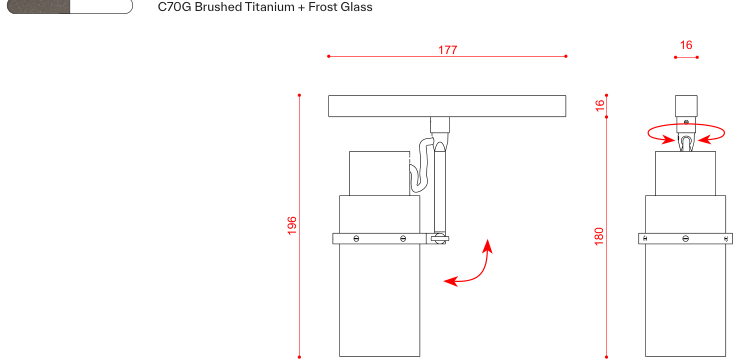

the price was read here · the article is printed here · the picture came from here · the drawing came from here
